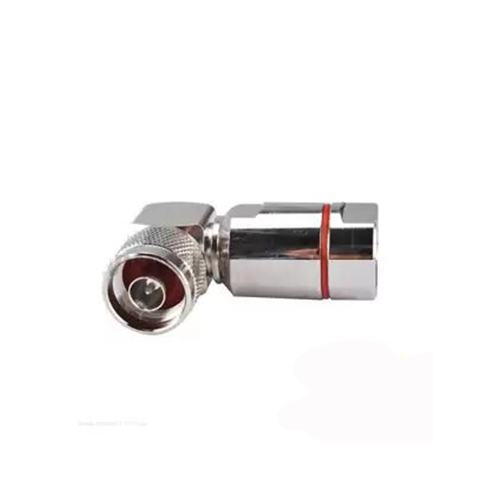

Роз'єм сумісні з наступними типами кабелів: RFA 1/2 "-50, RFX 1/2" -50 (випромінюючий кабель), LCF 12-50, Eupen 5128, LDF4-50A, 10D-SFCR, HFC-1/2 "
| ELECTRICAL DATA ELECTRICAL DATA | |
| Impedance Impedance | 50Ω 50Ω |
| Frequency Range Frequency Range | Flexible cables DC 11GHz, semi-rigd cables DC18GHz Flexible cables DC 11GHz, semi-rigd cables DC18GHz |
| Withstand Voltage Withstand Voltage | ≥ 2500V,50Hz ≥ 2500V, 50Hz |
| Working Voltage Working Voltage | ≤ 1000V,50Hz (sea level) ≤ 1000V, 50Hz (sea level) |
| Insulation Resistance Insulation Resistance | ≥ 5000mΩ ≥ 5000mΩ |
| Contact Resistance Contact Resistance | Inner conductor: ≤ 1.0mΩ Inner conductor: ≤ 1.0mΩ |
| Outer conductor: ≤ 0.2mΩ Outer conductor: ≤ 0.2mΩ | |
| RF leakage(2-3GHZ) RF leakage (2-3GHZ) | Flexible: ≥ 90dB Flexible: ≥ 90dB |
| 3rd order intermodulation 3rd order intermodulation | ≥ 140dBc ≥ 140dBc |
| MECHANICAL DATA MECHANICAL DATA | |
| Coupling nut torque Coupling nut torque | Recommended: 68Ncm--123Ncm / 6.0 in. Recommended: 68Ncm - 123Ncm / 6.0 in. lbs--10 in.lbs lbs - 10 in.lbs |
| Proof torque: 170 Ncm / 15.0 in.lbs Proof torque: 170 Ncm / 15.0 in.lbs | |
| Proof torque Proof torque | 170Ncm / 15.0 in.lbs 170Ncm / 15.0 in.lbs |
| Durability (matings) Durability (matings) | ≥ 500 ≥ 500 |
| ENVIRONMENTAL DATA ENVIRONMENTAL DATA | |
| Temperature range Temperature range | -65°C to +165°C -65 ° C to + 165 ° C |
| MATERIAL DATA MATERIAL DATA | |
| Bodies Bodies | Brass--Ternary alloy plating Brass - Ternary alloy plating |
| Pin contacts Pin contacts | Brass--Au/Ag plating Brass - Au / Ag plating |
| Socket contacts Socket contacts | Copper beryllium alloy--Au plating Copper beryllium alloy - Au plating |
| Crimp ferrules Crimp ferrules | Brass-- ternary alloy plating Brass-- ternary alloy plating |
| Insulator Insulator | PTFE PTFE |
| Gaskets Gaskets | Silicone rubber Silicone rubber |
